Chi-squared tests

ENVX1002 Introduction to Statistical Methods

Januar Harianto

The University of Sydney

Apr 2024

Outline

• Recap
• Categorical data
• Chi-squared distribution
• The Chi-squared test
• Example: Goodness of fit
• Example: Test of independence
• How do we visualise the differences in a contingency table?
• What about the test of homogeneity?
• Summary
• Thanks!

Recap

Parametric and non-parametric alternatives

• So far, all of our techniques have been aimed at comparing means/medians of continuous variables.
• The assumption of normality underpins these techniques – if the data is not normally distributed, we have alternatives like transforming the data or using non-parametric tests.
• Does this apply to all data?

A rational assumption?

• Are all randomly sampled data normally distributed?
• Recall probability distributions (Week 3) – normal distribution is just one of several possible distributions of data.
• It turns out that there are non-parametric techniques that are not just alternatives of parametric tests, but better suited for certain types of data.

Categorical data

Some data are not measured on a continuous scale, but rather as categories.

What are categorical variables?

Consider the following questions:

A biologist claims that when sampling the Australian Botanical Gardens for butterflies, the ratio of the most dominant colours (red, blue, green, and yellow) is equal. How would you determine if the biologist’s claim is true?

A study was conducted on a population of deer to see if there is a relationship between their age group (young, adult, old) and their preferred type of vegetation (grass, leaves, bark). Is age group of the deer independent of their vegetation preference?

How would you measure these variables, and what sort of summary statistics can you use?

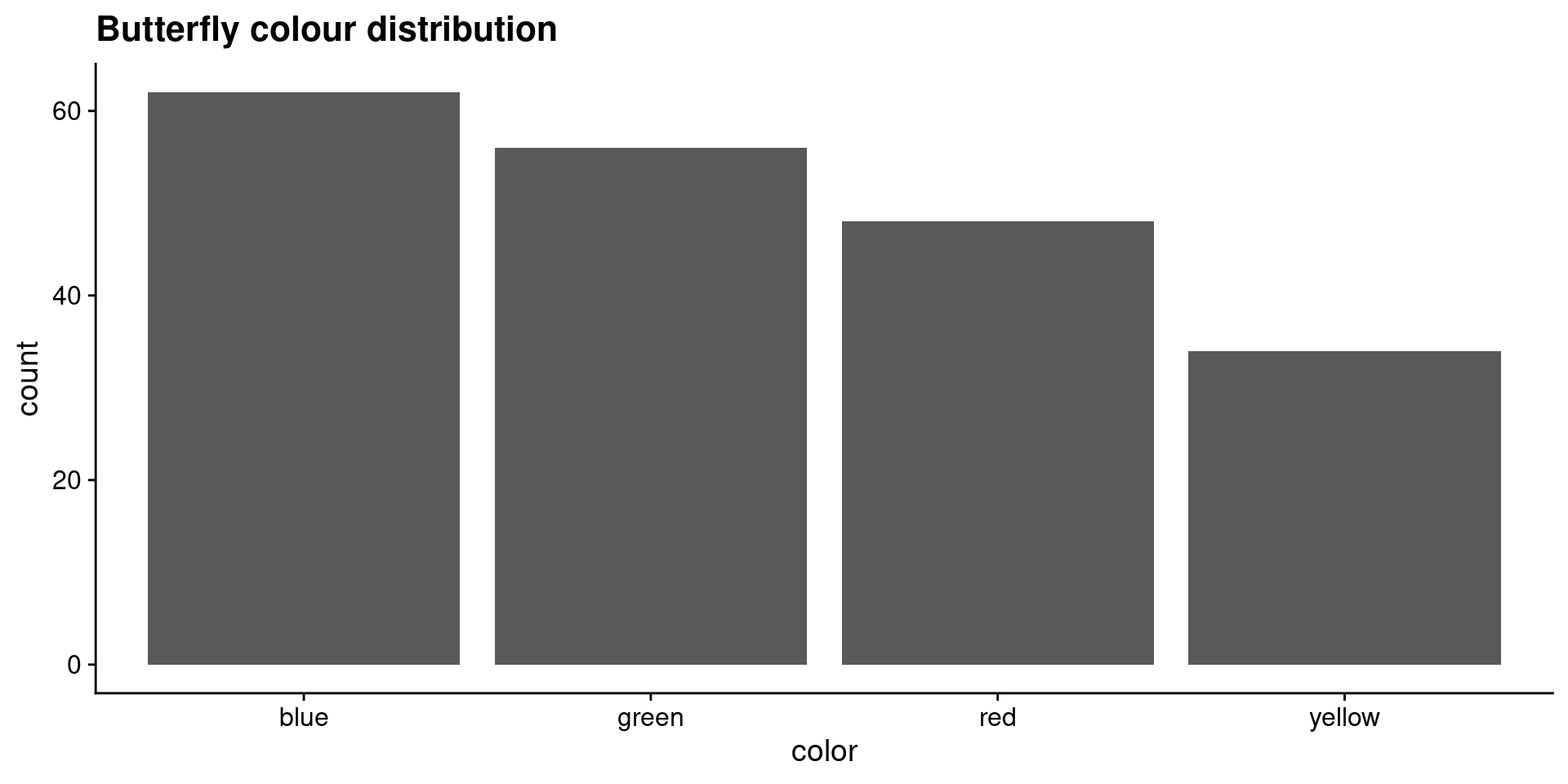

Visualising categorical variables

library(ggplot2)
# generate some butterfly data
butterfly_data <- data.frame(
    color = c("red", "blue", "green", "yellow"),
    count = c(48, 62, 56, 34)
)

# plot the data
ggplot(butterfly_data, aes(x = color, y = count)) +
    geom_bar(stat = "identity") +
    labs(title = "Butterfly colour distribution")

We can only count the number of times a particular category occurs, or the proportion of the total that each category represents.

Types of categorical data

• Rather than measuring a continuous variable, we are interested in counting the number of times a particular category occurs, or the proportion of the total that each category represents.
• These are known as categorical variables.
• Generally 3 types of categorical data:
  • Nominal: Categories have no inherent order (e.g. colours, breeds of dogs).
  • Ordinal: Categories have an inherent order (e.g. Likert scales, grades).
  • Binary: Only two mutually exclusive categories (e.g rain or no rain).

Chi-squared distribution

The chi-squared test

• The chi-squared test is perhaps one of the most prominent examples of non-parametric tests.
• Developed by Karl Pearson in 1900, pronounced “ki” as in “kite”, uses the Greek letter \chi.
• Actually derived from the normal distribution: a chi-squared distribution is the sum of squared standard normal deviates – essentially a folded-over and stretched out normal.

Chi-squared distribution vs normal distribution

curve(dchisq(x, df = 1), from = 0, to = 9, xlim = c(-10, 10), col = "blue", lwd = 2, ylab = "Density", xlab = "Value", main = "Chi-squared vs. normal")
curve(dnorm(x, mean = 0, sd = 1), from = -9, to = 9, col = "red", lwd = 2, add = TRUE)
abline(v = 0, col = "black", lty = 2)
legend("topright", legend = c("Chi-squared with 1 df", "Normal"), col = c("blue", "red"), lwd = 2)

How is the chi-squared distribution used in hypothesis testing?

Butterflies data

A biologist claims that when sampling the Australian Botanical Gardens for butterflies, the ratio of the most dominant colours (red, blue, green, and yellow) is equal. How would you determine if the biologist’s claim is true?

Suppose we have the following data on the colours of butterflies after randomly sampling 200 of them:

butterfly_data %>%
    knitr::kable()

color	count
red	48
blue	62
green	56
yellow	34

Testing the claim

• If the biologist’s claim is true, we would expect the number of butterflies of each colour to be equal.
• If 200 butterflies were sampled, we would expect 50 of each colour, as the expected frequency of each colour is 200 \times 0.25 = 50.

Therefore:

df <- butterfly_data %>%
    mutate(expected = 200 * 0.25)
knitr::kable(df)

color	count	expected
red	48	50
blue	62	50
green	56	50
yellow	34	50

Test statistic

The test statistic for the chi-squared test is calculated as:

\chi^2 = \sum \frac{(O - E)^2}{E}

where O is the observed frequency and E is the expected frequency.

So for the butterfly data:

chi_squared <- sum((df$count - df$expected)^2 / df$expected)
chi_squared

[1] 8.8

This is the test statistic for one sample. How do we interpret this value?

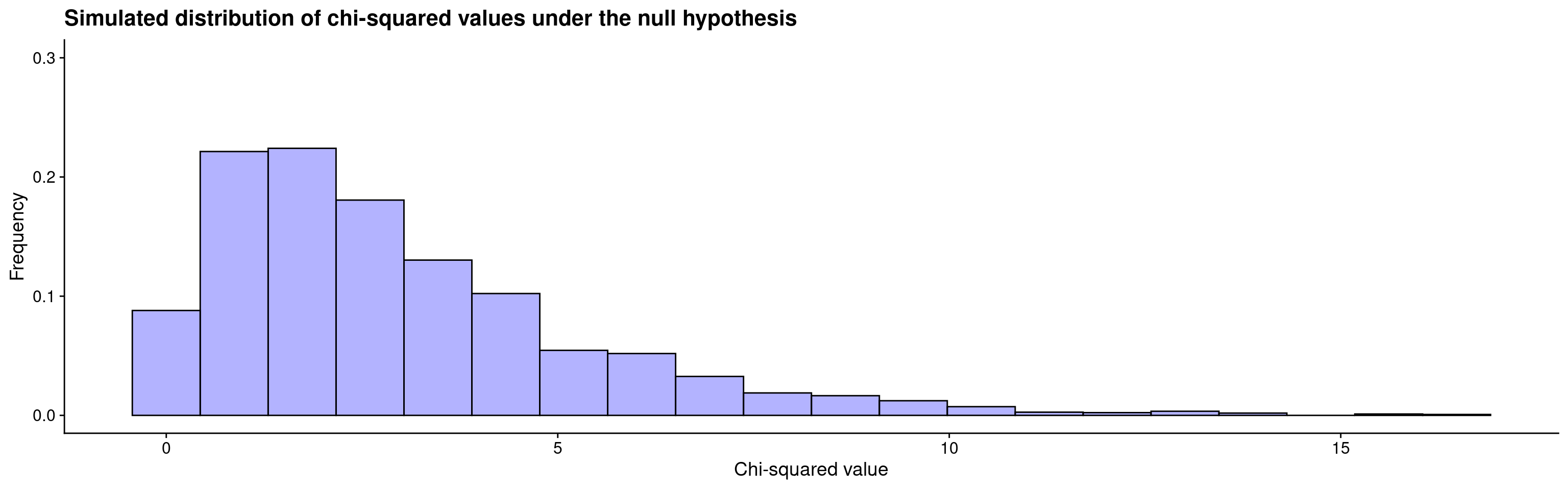

Simulate the null distribution

Under the null hypothesis, the observed frequencies are equal to the expected frequencies i.e. the biologist’s claim is true.

Suppose we repeat the sampling process many times, assuming the null hypothesis is true, each time calculating the test statistic. What would the distribution of test statistics look like?

# simulate sampling of 200 butterflies 1000 times under the null hypothesis and plot the distribution of chi-squared values
set.seed(123)
cols <- c("red", "blue", "green", "yellow")
B <- 3000
test_statistic <- vector(mode = "numeric", length = B)
for (i in 1:B) {
    sim <- sample(
        x = cols, size = 200, replace = TRUE,
        prob = c(0.25, 0.25, 0.25, 0.25)
    )
    sim_y <- table(sim)
    test_statistic[i] <- sum((sim_y - 50)^2 / 50)
}

p1 <-
    ggplot(data.frame(test_statistic), aes(x = test_statistic)) +
    geom_histogram(aes(y = ..density..), bins = 20, fill = "blue", colour = "black", alpha = 0.3) +
    ylim(0, 0.3) +
    labs(title = "Simulated distribution of chi-squared values under the null hypothesis") +
    xlab("Chi-squared value") +
    ylab("Frequency")
p1

What does our test statistic tell us?

p1 +
    geom_vline(xintercept = chi_squared, color = "red", size = 1) +
    # label the line
    annotate("text", x = chi_squared + 1.5, y = 0.25, label = "Observed value", color = "red", size = 5)

mean(test_statistic >= chi_squared)

[1] 0.034

Comparing our test statistic to the simulated distribution, we can see that the 0.03% of the simulated values are greater than our test statistic. What does this tell us?

A \chi^2 test

A chi-squared distribution allows us to perform the same hypothesis test without the need for simulation.

ggplot(data.frame(test_statistic), aes(x = test_statistic)) +
    geom_histogram(aes(y = ..density..), bins = 20, fill = "blue", colour = "black", alpha = 0.3) +
    ylim(0, 0.3) +
    stat_function(fun = dchisq, args = list(df = 3), color = "red", size = 1) +
    labs(title = "Simulated distribution of chi-squared values under the null hypothesis") +
    xlab("Chi-squared value") +
    ylab("Frequency")

Conclusion?

The results of the simulation suggest that the observed frequencies of butterfly colours are significantly different from the expected frequencies, and we can reject the biologist’s claim.

More on the chi-squared distribution

• The chi-squared distribution is non-symmetric and right-skewed.
• The shape of the distribution is determined by the degrees of freedom, calculated as the number of categories minus 1.
• As the degrees of freedom increase, the chi-squared distribution approaches a normal distribution due to the central limit theorem.

par(mfrow = c(2, 2))
curve(dchisq(x, df = 2), from = 0, to = qchisq(0.995, df = 2), col = "blue", lwd = 2, ylab = "Density", xlab = "Value", main = "Chi-squared with 2 df")
curve(dchisq(x, df = 10), from = 0, to = qchisq(0.995, df = 10), col = "blue", lwd = 2, ylab = "Density", xlab = "Value", main = "Chi-squared with 10 df")
curve(dchisq(x, df = 50), from = 0, to = qchisq(0.995, df = 50), col = "blue", lwd = 2, ylab = "Density", xlab = "Value", main = "Chi-squared with 50 df")
curve(dchisq(x, df = 100), from = 0, to = qchisq(0.995, df = 100), col = "blue", lwd = 2, ylab = "Density", xlab = "Value", main = "Chi-squared with 100 df")

The Chi-squared test

Definitions

• Chi-squared distribution: a distribution derived from the normal distribution that allows us to determine whether the observed frequencies of a categorical variable differ from the expected frequencies.
• Contingency table: a table that displays the frequency of observations for two or more categorical variables.
• Expected frequency: the frequency that we would expect to observe if the null hypothesis is true.
• Observed frequency: the frequency that we actually observe.
• Test statistic: a measure of how much the observed frequencies differ from the expected frequencies, standardised by the expected frequencies.

Types of chi-squared tests

• Goodness-of-fit test: used to determine whether the observed frequencies of a categorical variable differ from the expected frequencies.
• Test of independence: used to determine whether there is a relationship between two or more categorical variables.
• Test of homogeneity: used to determine whether the distribution of a categorical variable is the same across different groups.

Assumptions

• The chi-squared test is a non-parametric test, so it does not rely on the assumption of normality. However, it does have some assumptions:
  • Independence: the observations are independent.
  • Sample size: the expected frequency of each category is at least 1, and no more than 20% of the expected frequencies are less than 5.

The sample size assumption ensures that the chi-squared distribution is a good approximation of the normal distribution.

Example: Goodness of fit

A biologist claims that when sampling the Australian Botanical Gardens for butterflies, the ratio of the most dominant colours (red, blue, green, and yellow) is equal. How would you determine if the biologist’s claim is true?

Hypothesis

• Null hypothesis: the observed proportion of butterfly colours are equal to the expected proportions of 0.25 each.
• Alternative hypothesis: the observed proportions are not equal.

H_0: p_1 = p_2 = p_3 = p_4 = 0.25 H_1: \text{at least one } p_i \neq 0.25

Test statistic and check assumptions (in R)

# chi-squared test for goodness of fit
fit <- chisq.test(df$count, p = rep(0.25, 4))

Assumptions

By performing the chi-squared test, we can check the assumptions of the test by looking at the calculated frequences in the output:

fit$observed

[1] 48 62 56 34

Test statistic

fit

    Chi-squared test for given probabilities

data:  df$count
X-squared = 8.8, df = 3, p-value = 0.03207

Conclusion

The results of the chi-squared test suggest that the observed frequencies of butterfly colours are significantly different from the expected frequencies (\chi^2 = 8.8, df = 3, p < 0.001). We can reject the null hypothesis and conclude that the biologist’s claim is not true.

Note

If you’re interested, compare this result to the simulation we performed earlier.

Example: Test of independence

A study was conducted on a population of deer to see if there is a relationship between their age group (young, adult, old) and their preferred type of vegetation (grass, leaves, bark). Is age group of the deer independent of their vegetation preference?

Hypothesis

• Null hypothesis: the age group of the deer is independent of their vegetation preference.
• Alternative hypothesis: the age group of the deer is not independent of their vegetation preference.

H_0: \text{Age group is independent of vegetation preference}

No relationship between the two variables

H_1: \text{Age group is not independent of vegetation preference}

There is a relationship between the two variables

Data

Suppose we have the following data on the age group and vegetation preference of 100 deer:

# create contingency table as matrix with labels
deer_data <- matrix(c(20, 30, 10, 10, 10, 20, 10, 10, 10), nrow = 3, byrow = TRUE)
rownames(deer_data) <- c("young", "adult", "old")
colnames(deer_data) <- c("grass", "leaves", "bark")
deer_data

      grass leaves bark
young    20     30   10
adult    10     10   20
old      10     10   10

Test statistic and check assumptions (in R)

Assumptions are met as we can see the contingency table in the previous slide.

Test statistic

# chi-squared test for independence
fit <- chisq.test(deer_data) # exclude the age group column
fit

    Pearson's Chi-squared test

data:  deer_data
X-squared = 13.542, df = 4, p-value = 0.008911

We reject the null hypothesis since the p-value is less than 0.05.

Conclusion

The results of the chi-squared test suggest that the age group of the deer is not independent of their vegetation preference (\chi^2 = 12.4, df = 4, p < 0.001). We can reject the null hypothesis and conclude that there is a relationship between the age group of the deer and their vegetation preference.

How do we visualise the differences in a contingency table?

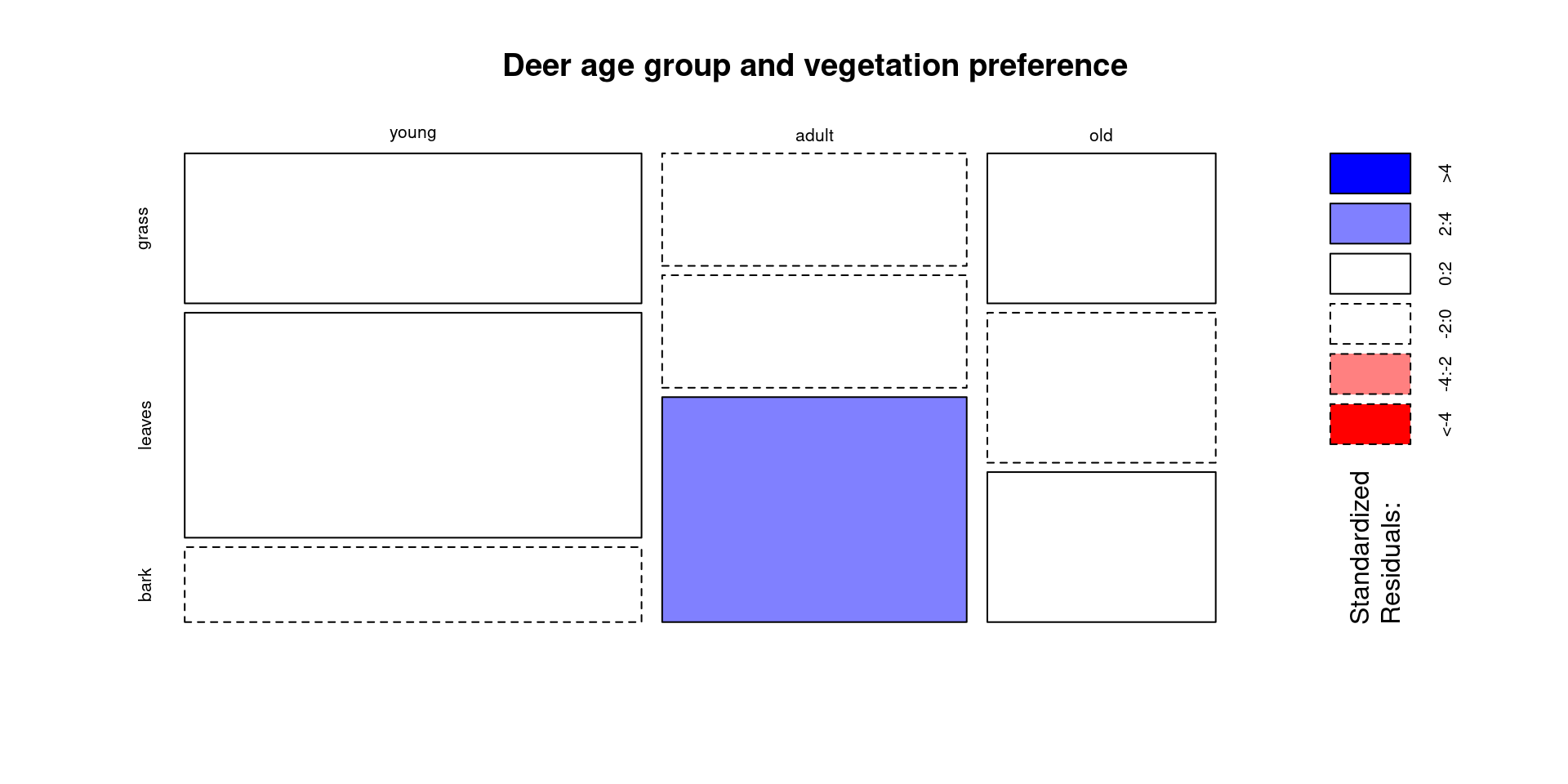

Mosaic plots

mosaicplot(deer_data,
    shade = TRUE,
    main = "Deer age group and vegetation preference"
)

Interpretation

• The area of each rectangle is proportional to the number of observations in that category.
• The shading of each rectangle indicates the expected frequency of observations in that category.
• The darker the shading, the greater the difference between the observed and expected frequencies.
• Dotted lines indicate independence between the two variables.
• Solid lines indicate dependence between the two variables.

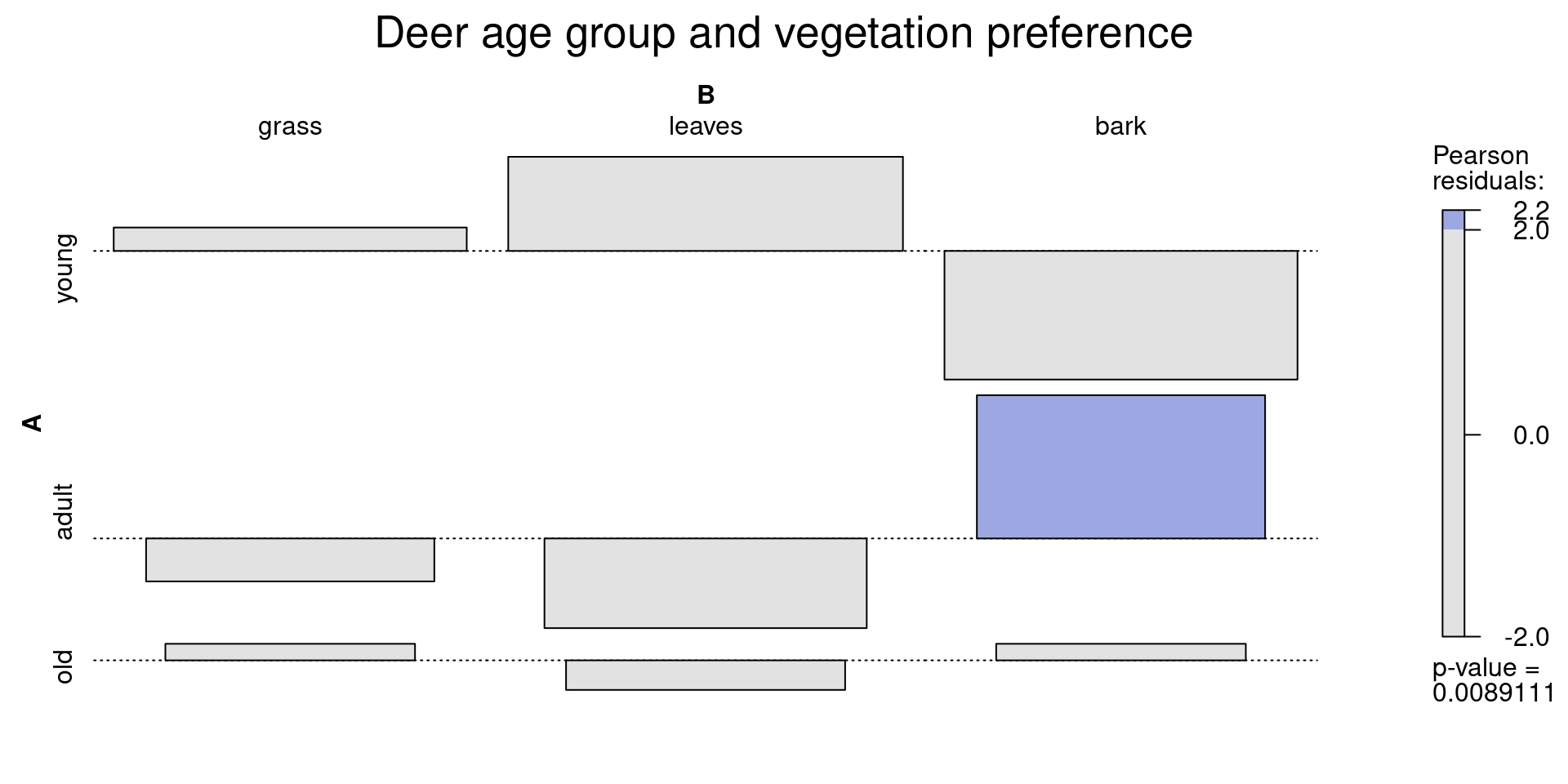

Association plots

library(vcd)
assoc(deer_data, shade = TRUE, main = "Deer age group and vegetation preference")

Interpretation

• Size of cells indicate the number of observations in that category.
• The shadings are made based on the residuals of the chi-squared test (see legend), highlighting which cells contribute most to the chi-squared statistic.
• Colour of the shadings indicate whether they are more or less frequent than expected (again, see legend).

What about the test of homogeneity?

Test of homogeneity vs. test of independence

• The test of homogeneity is similar to the test of independence, but is used when we have two or more groups and we want to determine whether the distribution of a categorical variable is the same across different groups.
• In general, this means that the null hypothesis is stated differently, and the test statistic is calculated in a slightly different way with different degrees of freedom.
• Homogeneity
  • H_0: The distribution of the categorical variable is the same across different groups.
  • H_1: The distribution of the categorical variable is not the same across different groups.
• Independence
  • H_0: The variables of interest are independent.
  • H_1: The variables of interest are not independent.

Differences are subtle

• In the test of independence, observational units are collected at random from a single population and two (or more) categorical variables are observed for each unit.
• For the deer example, the experimental design would involve randomly sampling deer and recording their age group and vegetation preference.

Is age group independent of vegetation preference?

• In the test of homogeneity, the data are collected by randomly sampling from two or more subgroups, and the same categorical variable is observed for each unit.
• For the deer example, the experimental design would have to be modified to sample the vegetation preference of deer from young, adult, and old populations.

Is the distribution of vegetation preference the same if we compare young, adult, and old deer?

Summary

When to use a chi-squared test?

• The chi-squared test is not an “alternative” to a parametric test, but is better suited for certain types of data and requires delibarate experimental design that collects data in a certain way.
• If we have categorical data and we want to determine whether the observed frequencies differ from the expected frequencies, then we can use a chi-squared test.

Thanks!

This presentation is based on the SOLES Quarto reveal.js template and is licensed under a Creative Commons Attribution 4.0 International License.
